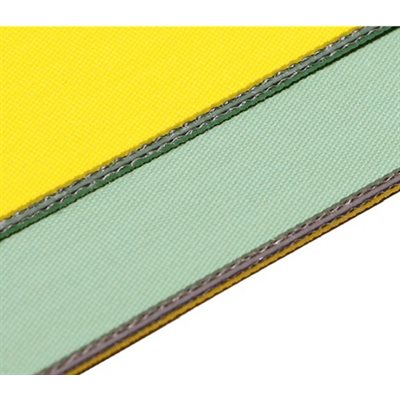

CM-4/30F Polyamide Folder-Gluer Belt - 0.5"

Mouse over the image to zoom. Double-tap and hold to zoom.

CM-4/30F Polyamide Folder-Gluer Belt - 0.5"

Name: CM-4/30F Polyamide Folder-Gluer Belt - 0.5"
Brand: Habasit
SKU: CM-4/30F-1/2
Price: 3.81 USD
Availability: InStock

Part Number: CM-4/30F-1/2

Main Industry Segments: Cardboard converting, Paper manufacturing and processing

Applications: Folder-gluer belt, processing belt

Special Features: Abrasion resistant, adhesive-free joint, constant coefficient of friction, dimensionally stable, forgiving in case of short term shock-like overloads

$3.81 /PER FOOT

CM-4/30F Polyamide Folder-Gluer Belt - 0.75"

CM-4/30F Polyamide Folder-Gluer Belt - 1"

CM-4/30F Polyamide Folder-Gluer Belt - 1.25"

CM-4/30F Polyamide Folder-Gluer Belt - 1.5"

CM-4/30F Polyamide Folder-Gluer Belt - 1.75"

CM-4/30F Polyamide Folder-Gluer Belt - 2"

Belting Thickness (mm) 3.00mm
Belting Joining Method Flexproof

Qty

PER FOOT

Online Availability

Available to Order

Description Product Reviews

Specifications

Product Data
Joining Method:	Flexproof (10 x 80mm)
Belt Thickness:	3.00mm (0.12 in)
Tensile Force:	4 N/mm (23 lbf/in)
Min. Operating Temp:	-20°C (-4°F)
Max Operating Temp:	65°C (149°F)
Min Pulley Diameter:	40mm (1.57 in)
Machine Speed:	Up to 300m/min

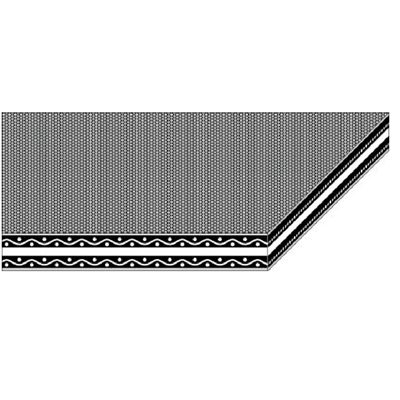

Product Construction
Conveying Side Material:	Acrylonitrile-Butadiene-Rubber (NBR)
Conveying Side Surface:	Rough Structure
Conveying Side Property:	Adhesive
Conveying Side Color:	Light Green
Traction Layer:	Polyamide (PA)
Number of Fabrics:	2
Pulley Side Material:	Acrylonitrile-Butadiene-Rubber (NBR)
Pulley Side Surface:	Rough Structure
Pulley Side Property:	Adhesive
Pulley Side Color:	Yellow
