Habasit Flexproof Hot Press 60mm

Part Number: PF-62

Habasit's PF-62 is a hot pressing device for Flexproof belt joining.

Checkmark Icon

Wide press plate for finger sizes of 10mm x 120mm

Checkmark Icon

Compatible with belting up to 5mm in thickness & 60mm in width

Checkmark Icon

Equipped with LED indicator light and overheating protection

$1,905.00 /EACH
List price: $1,905.00 /EACH
    • EACH
  • Availability: Available to Order

The PF-62 is a hot-pressing device for Flexproof joining of Habasit power transmission belts made of thermoplastics. With cooling tong CD-61 and an adjustable guide rail set you have a joining system that enables you to exchange a belt within minutes. The wide press plate allows making 10/120 mm Flexproof finger joints for optimal strength also in situations where space is tight and visibility is poor. The PF-62 is suitable mainly for on-site joining. New features of PF-62 are a status indication (LED display) and an overheating protection which provides an improved tool reliability. Thanks to this new control unit it is now possible to enter the temperature in a range between 120°C to 190°C.

Habasit # H088000409

Specifications

Technical Data
Belt Joint Type: Flexproof
Belt/Tape Max Width: 60mm (2 in)
Belt/Tape Max Thickness: 5mm (0.18 in)
Temp. Range: 120°C to 190°C (248°F to 374°F)
Cooling Method: Cooling tongs
Weight: 1.80 kg (4.00 lbs)
Dimensions (mm): 320 x 176 x 116mm
Dimensions (in.): 12.60" x 6.90" x 4.60"
Power: 1ph 120V 60Hz @ 500W

Documents

You May Also Be Interested In

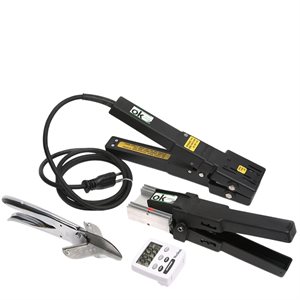

Habasit Quickmelt Hot Pressing Kit w/case 50mm
  • $2,126.80 /EACH
  • List price $2,126.80 /EACH
  • EACH
  • Availability: Available to Order

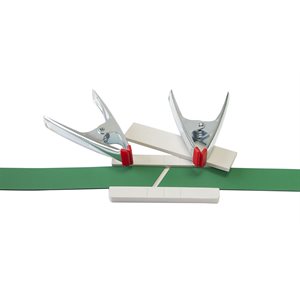

Guide Rail Set 1"
  • $133.79 /EACH
  • List price $133.79 /EACH
  • EACH
  • Availability: In stock

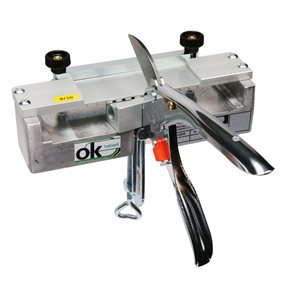

Habasit Fexproof Finger Cutter 100mm (8 x 30mm fingers)
