Hohner Stitching Head M45/6 14mm Cr. 8mm Thickness **Clincher 9959429**

Mouse over the image to zoom. Double-tap and hold to zoom.

Hohner Stitching Head M45/6 14mm Cr. 8mm Thickness Clincher 9959429

Name: Hohner Stitching Head M45/6 14mm Cr. 8mm Thickness **Clincher 9959429**
Brand: Hohner
SKU: 0549080ML
Price: 5142.80 USD
Availability: InStock

Part Number: 0549080ML

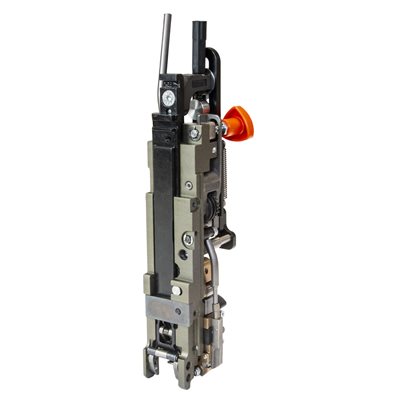

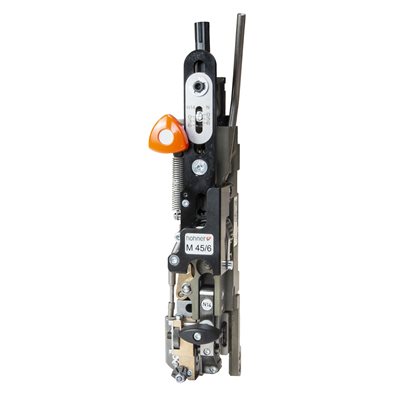

The Hohner M45/6 was designed for Muller, Osako & Purlux machines. The stitcher head will replace original Muller head models HK75, HK55 and HK45. It is operator friendly, allowing for wire length and thickness adjustments in seconds.

Includes Stitcher Head, Clincher Assembly, Wire Guide, Centering Device and Tool Kit.

$5,142.80 /EACH

Hohner Stitching Head M45/6, 12mm Cr. 6mm Thickness

Hohner Stitching Head M45/6, 12mm Cr. 6mm Thickness **Clincher 9959429**

Hohner Stitching Head M45/6, 12mm Cr. 6mm Thickness **Clincher 9955505**

Hohner Stitching Head M45/6 14mm Cr. 8mm Thickness

Hohner Stitching Head M45/6 14mm Cr. 8mm Thickness **Clincher 9955505**

Qty

EACH

Online Availability

Available to Order

Description Parts Finder

Specifications

Technical Data
Max Capacity:	0.24" (6mm)
Crown Width:	0.55" (14mm)
Wire Sizes:	24-26 (Please call for 23 or 26-28 gauge set up)
Minimum Center-to-Center:	1.7" (45mm)
Weight:	5 lbs
Machines:	Presto, Valore, Minuteman (built after 2004)
Muller* Equivalents:	HK45, HK75, HK75V
Clincher Box Height:	4"
