Hohner Stitching Head, 52/8S 8mm Loop

Part Number: 0522288

The Hohner 52/8s was designed for flexibility with optional exchange parts for various crown widths, loop diameters, and wire types. It is operator friendly, allowing for wire length and thickness adjustments in seconds.

Includes Stitcher Head, Clincher Assembly, Wire Guide and Tool Kit.

$4,212.00 /EACH
List price: $4,212.00 /EACH
    • EACH
  • Availability: Available to Order

Specifications

 Technical Data
Max Capacity: 5/16" (8mm)
Crown Width: 9/16" (14mm)
Wire Sizes: 24-26 gauge loop
Minimum Center-to-Center: 2" (52mm)
Weight:  8 lbs.
Stitches per Hour: Up to 20,000



Documents

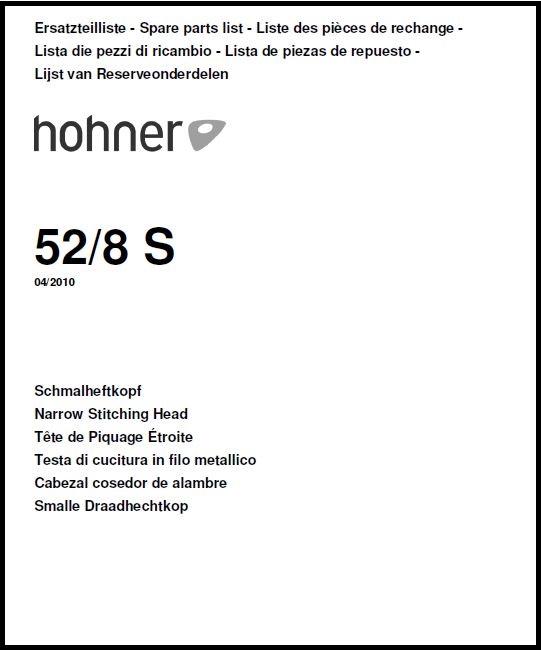

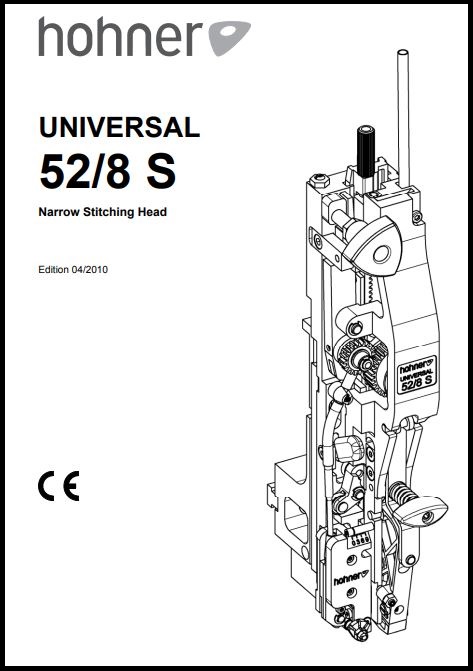

Parts Manual Operation Manual

Machines
AM Graphics Harris 250 McCain Speedbinder
Bielomatik P233 Harris 455 (Prosetter) McCain 1800XL
Bielomatik P390 Harris 512 & 560 McCain 2000XL
Deluxe/Bostitch 17AW Harris 562 McCain 2500LS
Brehemer ST200, 270,300 Harris 650 & 655 McCain 3000LS
Brehemer T1000/S1000 Harris Multibinder Omegabinder
Fennimore Kugler 376-4 Parker
Gidico Laconda Rosback 201, 202, 203
Harris 120 Macey 560 & 562 Stahl ST100
Heidelberg ST270/370
