Meech 261v2 DC Ionizing Nozzle w/ 6mm Push-fit Inlet & Flexible Outlet
Double-tap and hold to zoom.
Mouse over the image to zoom.

Meech 261v2 DC Ionizing Nozzle w/ 6mm Push-fit Inlet & Flexible Outlet

Part Number: 261V2-32-FLEX

The Meech Model 261v2 Flexi Nozzle is a compact ionizer featuring a 6mm push-fit inlet and an outlet extended with flexible knuckle trunking.

This nozzle is tailored for use with a Meech Pulsed DC Controller and can be easily integrated into machinery and equipment. Simply connect compressed air on the inlet end, and ionized air will be discharged from the outlet nozzle. It excels in high-speed applications, particularly in sheet delivery systems.

Meech Pulsed DC Controller Sold Separately

$305.00 /EACH
List price: $305.00 /EACH
    • EACH
  • Availability: Available to Order

Complete System:

- 261v2 Ionizing Nozzle (up to 2 per power supply)

233V4 Power Supply (x1)

900IPS Power Cable (x1)

Optional:

Mounting Bracket

Splitter (run more than 2 ionizing nozzles off 1 power supply, up to 14+ with additional splitters)

Specifications

 Technical Information
 Air Fitting (Inlet): 6mm Diameter Push Fit
 Air Fitting (Outlet): Flexible trunking nozzle
 Mas Air Pressure: 100 psi (7 bar)
 Typical Pressure: 20 to 40 psi (1.5 to 3 bar)
 Emitter Pins: Machined Titanium (replaceable)
 Decay Time: 0.8 sec at 150mm at 30 psi
 Ozone: less than 0.1 ppm
 Input Voltage: +/- 9kV DC Nominal
 Ion Balance: +/- 10V or better at set up

Documents

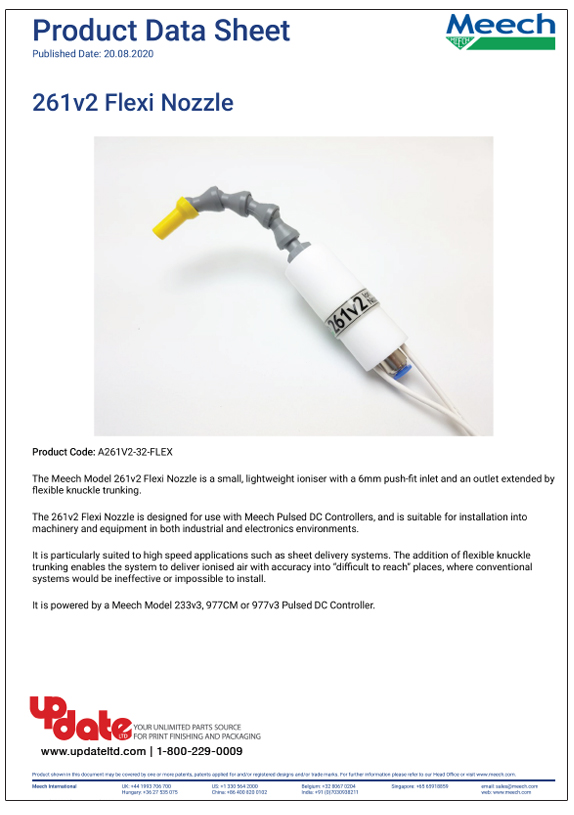

 Data Sheet
 Operating Manual



Accessories

Power Supply: 233V4

Mounting Bracket: 260FIX

Splitter: 4WAY

Static Locator: 983V2



Other Nozzle Options

261V2-32-FLEX-1/4: 1/4" BSP Inlet & Flexible Outlet

261V2-32-1/4OUT: 6mm Push-fit Inlet & 1/4" BSP Outlet

261V2-32-BSP: 1/4" BSP Inlet & 1/4" BSP Outlet
