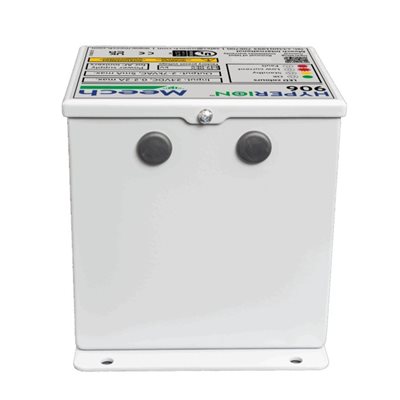

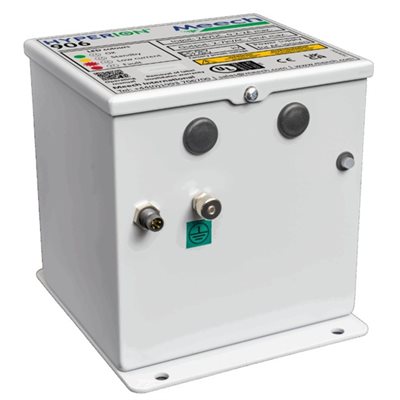

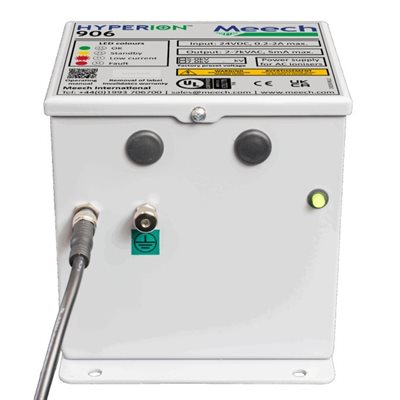

Meech 906 AC Power Unit 7kV 60Hz

Name: Meech 906 AC Power Unit 7kV 60Hz
Brand: Meech
SKU: 906
Price: 791.00 USD
Availability: InStock

Part Number: 906

The Hyperion™ 906 Power Unit delivers reliable power for AC static eliminator bars, with adjustable ionizing output from 2–7kV for optimized performance. It safely powers up to four static bars at once and features LED status indicators and remote fault alerts for easy monitoring. Designed with operator safety in mind, it maintains a low short circuit current of <5mA, making it ideal for a wide range of industrial applications.

***Power Cable sold seperately.***

$791.00 /EACH

Qty

EACH

Online Availability

Available to Order

Description Product Reviews

Specifications

Technical Data
Weight:	7.2 lbs (3.27 kg)
Dimensions (H x W x D):	4.72" (120mm) x 5.12" (130mm) x 4.96" (126mm)
Input Voltage:	24V DC, 4-pin M8, ground terminal & M4 HV output post
Output Voltage:	7kV (adjustable 2–7kV with Barmaster)
Output Frequency:	70 Hz
Output Current:	< 5 mA
Mounting:	4 x 6mm holes
Output Ports:	4 x HV connection ports
