| Technical Data | |
|---|---|
| Typical Operating Range: | 1.18" (30mm) - 5.91" (150mm) |
| Dimensions: | 0.71" (18mm) x 1.65" (42mm) x Length (up to 157.5" or 4000mm) |
| Weight: | 2.43 lbs (1100 gm) per 39.37" (1m) |
| Operating Voltage: | 4.5 - 7.0 kV |
| Cable: | 2 meters (6.56 ft) shielded in flexible conduit |
| Construction: | Anodised aluminum and fire retardant PVC extrusion |
| Mounting: | Two M4 x 20mm studs into "T" slots |
| Max Operating Temp: | 60° C (140° F) |
| | | |

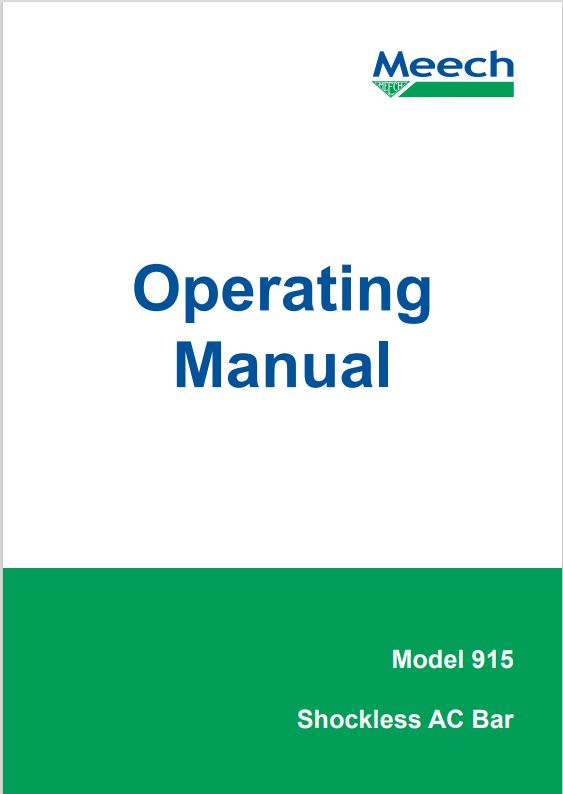

| Data Sheet | Instructions | Static Causes & Cures |

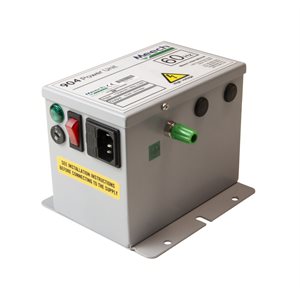

Power Supply: 904 (60Hz) or 904-50 (50Hz)
Inline Air Ionizer: 942-BE or 261V2-32-FLEX
Static Locator: 983V2
