Meech 904 AC Power Unit 7kV 60Hz (DISCONTINUED)

Mouse over the image to zoom. Double-tap and hold to zoom.

Meech 904 AC Power Unit 7kV 60Hz (DISCONTINUED)

Part Number: 904

The Meech Model 904 is a constant voltage AC power supply, designed to provide a 7kV source for Meech AC 915 ionizing bars or 954v3 Blowers. It is adjustable to operate at 100-120v or 200-240v input voltages and is available in either 50Hz or 60Hz versions to suit local conditions. The 904 utilizes a modified shape of output wave form for powerful static neutralization and is uniquely designed to allow automated manufacture for increased reliability and extended product life.

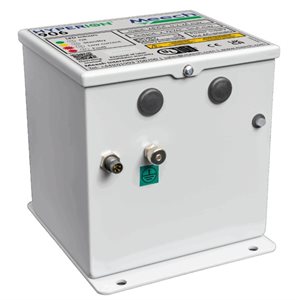

This item was discontinued and replaced with the 906 Power Supply.

Contact us for pricing

Meech 904 AC Power Unit 7kV 50Hz

Online Availability

Discontinued

This item is no longer supplied by the manufacturer. Check the product page for alternatives or contact us to explore possible substitutes.

Description Product Reviews

Specifications

Technical Data
Weight:	7.2 lbs (3.27 kg)
Dimensions (H x W x D):	5.71" (145mm) x 5.12" (130mm) x 4.45" (113mm)
Input Voltage:	110 or 240V AC
Output Voltage:	7kV
Input Frequency:	60 Hz
Output Current:	< 5 mA
Max Load:	12m (39 ft) of ionizing appliances and cable
Power Consumption:	140W
