Habasit PT-300 Thermofix Hot Press 300mm

Mouse over the image to zoom. Double-tap and hold to zoom.

Habasit PT-300 Thermofix Hot Press 300mm

Name: Habasit PT-300 Thermofix Hot Press 300mm
Brand: Habasit
SKU: PT-300
Price: 6390.00 USD
Availability: InStock

Part Number: PT-300

Habasit's PT-300 is a hot pressing device for Thermofix belt joining.

Join belting up to 300mm wide x 8mm thick (12 in x .31 in.)

Accommodates skive lengths of up to 110mm (4 in.)

Adjustable pressure settings with threaded spindle and torque wrench

$6,390.00 /EACH

Qty

EACH

Online Availability

Available to Order

Description Videos Product Reviews

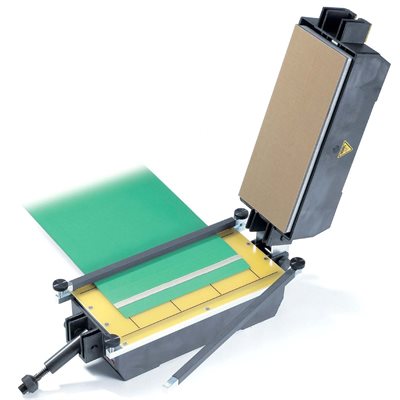

The PT-300 is a hot-pressing device designed for joining Habasit driving and conveyor belts using the Thermofix procedure. The heated bottom pressure plate is fitted with a removable setting plate with clamping bars for securely fixing the belt ends. The pressure is produced by means of a threaded spindle and torque wrench. The hot-pressing device PT-300 is suitable for both workshop and portable use.

Habasit Model PT-300/6, # H080690290

Specifications

Technical Data
Belt Joint Type:	Thermofix
Belt/Tape Max Width:	300mm (12 in)
Belt/Tape Max Thickness:	8mm (0.31 in)
Temp. Range:	100°C to 120°C (212°F to 248°F)
Cooling Method:	Ambient air
Weight:	12.00 kg (26.50 lbs)
Dimensions (mm):	420 x 175 x 200mm
Dimensions (in.):	16.50" x 6.90" x 7.90"
Power:	1ph 120V 60 Hz @ 800W
