Habasit Flexproof & Quickmelt Hot Pressing Device w/Case 50mm

Part Number: PQ-59

Habasit's PQ-59 is a flat belt fabricating heat press for Quickmelt & Flexproof joining.

Checkmark Icon

Join belts up to 50mm wide x 4mm thick

Checkmark Icon

Exchange belts in minutes either on or off the machine

Checkmark Icon

Temperature range of 120°C to 190°C (248°F - 374°F)

$1,683.70 /EACH
List price: $1,683.70 /EACH
    • EACH
  • Availability: In stock

The PQ-59 is a hot pressing device for joining of Habasit machine and spindle tapes with the Quickmelt or Flexproof method. With an additional cuttercooling tong and a guide rail you have a joining system that enables you to exchange a tape in minutes. Features of PQ-59 are a status indication (LED display) and overheating protection, which provides improved tool reliability. Thanks to a control unit, it is possible to enter the temperature in a range between 120°C to 190°C.

Habasit model PQ-59/6, #H088000230

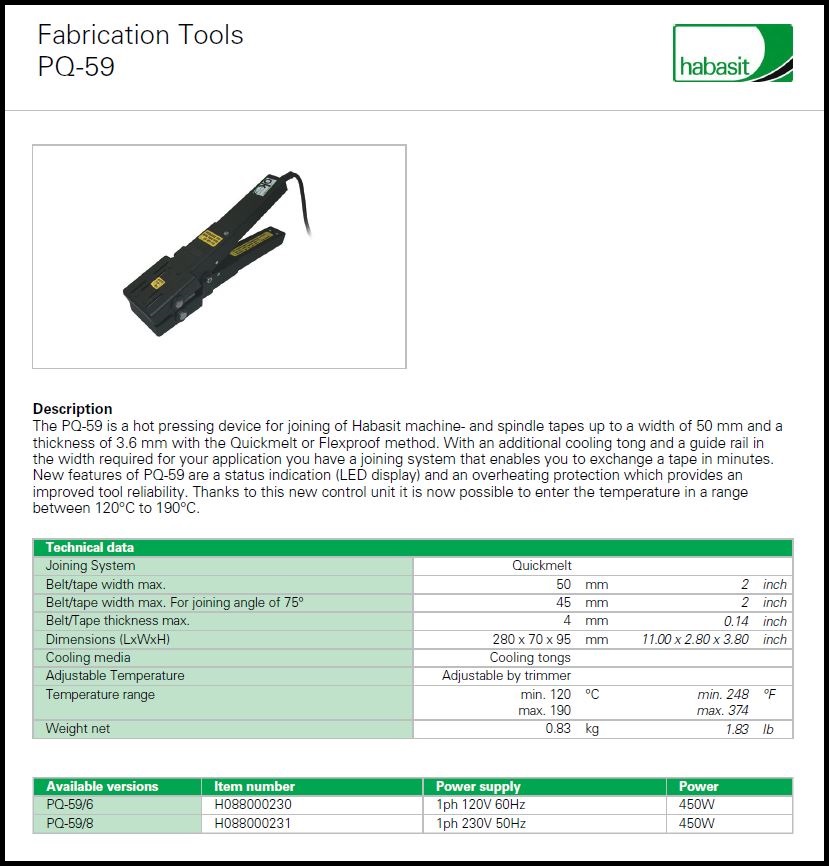

Specifications

PQ-59 Heater
Belt Joint Type: Quickmelt / Flexproof
Belt/Tape Max Width: 50mm (2 in)
Belt/Tape Max Thickness: 4mm (0.14 in)
Temperature Range: 120°C to 190°C (248°F to 374°F)
Cooling Method Cooling tongs
Dimensions (mm): 280 x 70 x 95mm
Dimensions (in.): 11.00" x 2.80" x 3.80"
Power: 1ph 120V 60Hz 450W

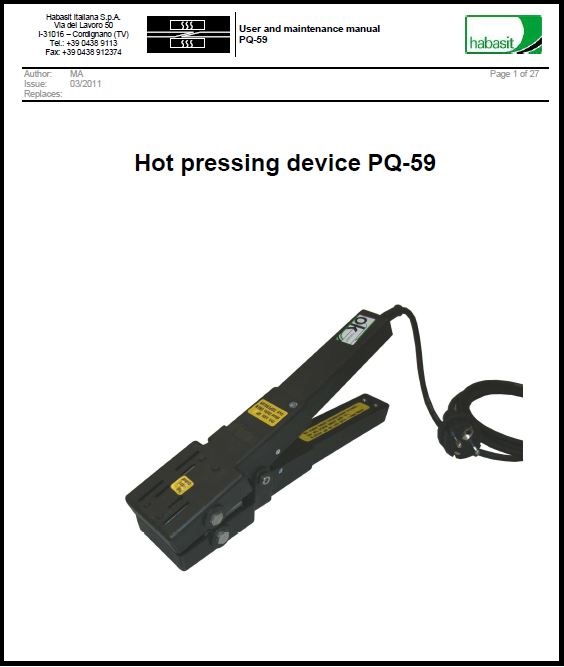

Documents
