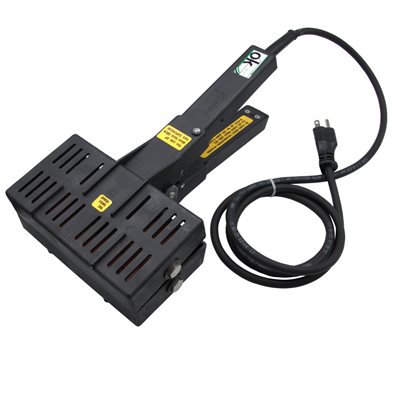

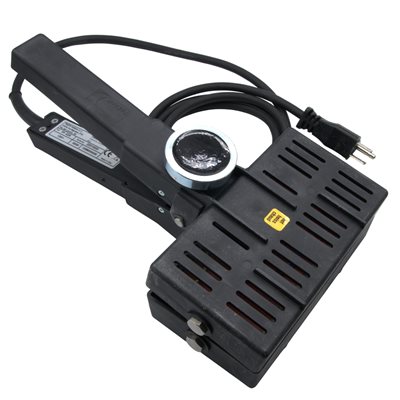

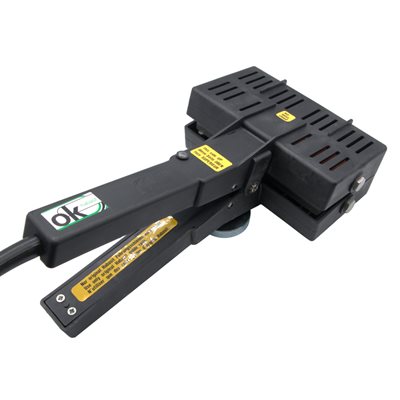

Habasit Flexproof Hot Press 60mm

Part Number: PF-62

The Habasit PF-62 Heat Press is a compact belt fabrication press designed for Flexproof joining of flat belts. Its wide press plate accommodates 10mm x 120mm finger joints and provides reliable heat joining for belts up to 60mm wide.

Joins flat belts up to 60mm wide x 5mm thick
Designed for Habasit Flexproof belt joining

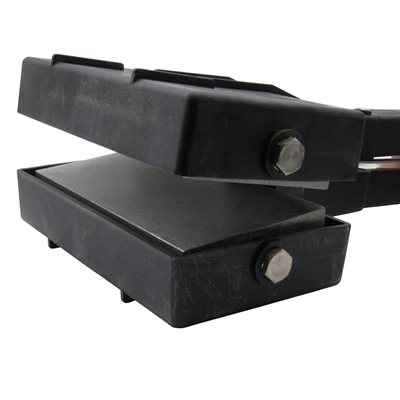

Wide press plate accommodates 10mm x 120mm finger joints
LED indicator light for easy operation
Built-in overheating protection

$2,487.60 /EACH

Online Availability

Available to Order

Description Product Reviews

The PF-62 is a hot-pressing device designed for Flexproof joining of Habasit thermoplastic power transmission belts. Combined with the CD-61 cooling tongs and the appropriate adjustable guide rail set, it creates an efficient on-machine joining system that allows belts to be replaced quickly.

The wide press plate accommodates 10/120 mm Flexproof finger joints for strong, reliable splices, even where working space and visibility are limited. Designed primarily for on-site joining, the PF-62 features an LED status display, overheating protection, and adjustable temperature control from 120 °C to 190 °C.

Habasit Model: PF-62
Habasit #: H088000409

Specifications

PF-62 Heater
Belt Joint Type:	Flexproof
Max Belt/Tape Width:	60 mm (2 in)
Max Belt/Tape Thickness:	5 mm (0.18 in)
Temperature Range:	120 °C to 190 °C (248 °F to 374 °F)
Cooling Method:	Cooling tongs
Weight:	1.80 kg (4.00 lbs)
Dimensions:	320 × 176 × 116 mm 12.60" × 6.90" × 4.60"
Power:	1 ph, 120 V, 60 Hz, 500 W
