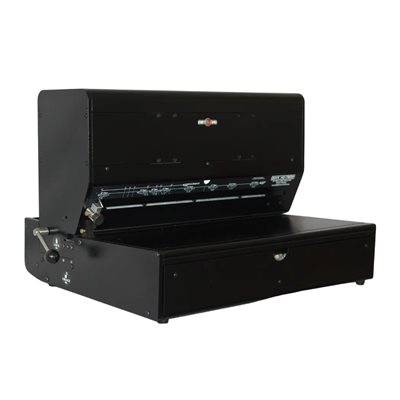

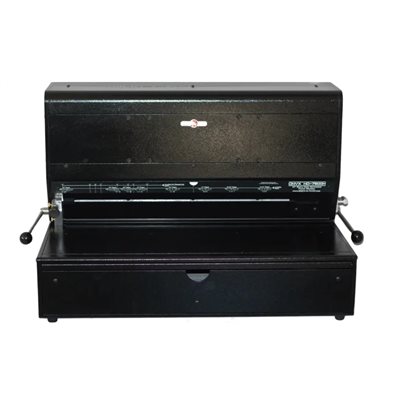

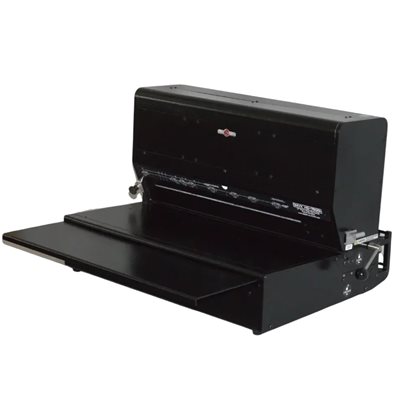

Rhin-O-Tuff ONYX HD7500H Electric Punch
Part Number: HD7500H
The Rhin-O-Tuff HD7500H is a heavy duty 24" horizontal punching machine
Punch up to 24" (610mm) documents
Interchangeable dies available for comb, wire loop, plastic coil, Velo Bind, & 3 hole punching
Includes punch machine, power cord, foot pedal, reversing tool, & lubrication oil
List price: $5,999.00 /EACH
- Punch Type : Combination
- Punch Capacity : 40 Sheets
- Manual or Electric : Electric
- Punch Width : 24"
- Availability: Available to Order
The Onyx HD7500H Horizontal was designed with the operator in mind, offering quick, easy set-up including easy pin pulls and pre-set paper stop positions. The machine comes with twin motors, giving you plenty of power for those difficult jobs. Add a six-year warranty on the makes the HD7500H top of its class. Designed for mid to high volume commercial and corporate use.
Features
• High Punch Capacity - rated up to 40 sheets of 20 lb (80gms) paper, equal to 80 pages (dependent on paper weight and punch pattern)
• Fast Cycle Times - achieve 53 cycles per minute
• E-Z Change Dies - switch punch patterns in a few quick and easy steps
• Swing Away Die Pin Retainer - each die pin can be quickly accessed or removed
• Diverse Punch Patterns -20 interchangeable die patterns available in comb, wire loop, plastic coil, Velo bind, and 3 hole loose leaf
• Jam Reverse - has both automatic and manual reversing feature for removing pin or die jams
• Longevity - machine includes a 6 year mechanical warranty, ensuring confidence in durability
Specifications
| Technical Data | |
|---|---|
| Model: | ONYX HD7500H |
| Sheet Width Capacity: | 24" |
| Punch Capacity: | 40 sheets (80 pages) of 20 lb. (80 GSM) bond |
| Cycles per Minute: | 53 |
| Electrical: | 115 VAC, 8 Amp, 60 Hz (standard) |
| Dimensions: | 18" H x 32" W x 20" D |
| Machine Weight: | 148 lbs. |
Documents
| Model Name | OD4012 | HD7000 | HD7500H | HD7725 | HD7725H | CBS3000 |
|---|---|---|---|---|---|---|
| Model: |  |  |  |  |  |  |
| Punch Type: | Vertical | Vertical | Horizontal | Vertical | Horizontal | Vertical |
| Punch Width: | 11.7" | 14" | 24" | 14" | 14" | 11.7" |
| Capacity: | 60 pages | 80 pages | 80 pages | 110 pages | 110 pages | 40 pages |
| Cycles per Minute: | 65/mim | 56/min | 53/min | 65/min | 65/min | N/A |
| Hole Patterns: | Coil, Wire, Comb | Coil, Wire, Comb | Coil, Wire, Comb | Coil, Wire, Comb | Coil, Wire, Comb | Coil |
| Weight: | 70 lbs. | 148 lbs. | 96 lbs. | 88 lbs. | 75 lbs. |
