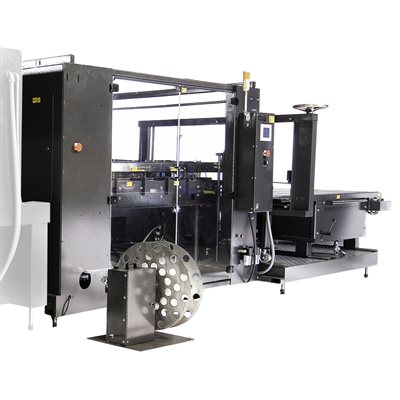

Eastey Automatic L-Sealer, 30 in. x 50 in., Hot Knife, 220V, Professional Series
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge
Eastey

Eastey Automatic L-Sealer, 30 in. x 50 in., Hot Knife, 220V, Professional Series

Part Number: EA3050-TKV1

Proven reliable over and over again, EASTEY’s Automatic L-Sealers provide you with all the quality features found in much higher priced machines. They are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC.
$72,000.00 /EACH
List price: $72,000.00 /EACH
    • EACH
  • Availability: Available to Order
 Specifications
 Seal Dimensions:   50" Front x 30" Side
 Machine Dimensions:   86"W x 74"H x 163"L
 Accepted Films:  Polyolefin, Polyethylene, and PVC
 Max Film Width:  54"
 Sealer Head Type:  Hot Knife
 Power:  220V 30/35A Single Phase
 Weight:  4600 lbs
 Ship Weight:  4800 lbs

• Designed to seal most polyolefin, polyethylene, and PVC* shrink films

• All-welded main frame from 1/4" cold rolled steel

• Soft start infeed and outfeed conveyers to reduce shifting of products

• Variable speed infeed and outfeed conveyers

• Side adjustable film rack for perfect alignment

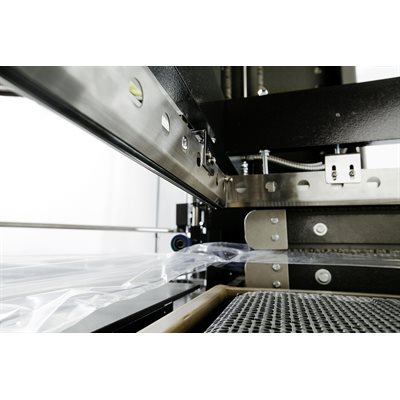

• Seal head casting equipped with pneumatic air cylinder for automatic sealing

• Hot knife seal available with mushroom (standard), pancake, arrow, or poly inserts

• Consistent pressure across seal bar

• Automatic cycle timing with adjustable dwell time

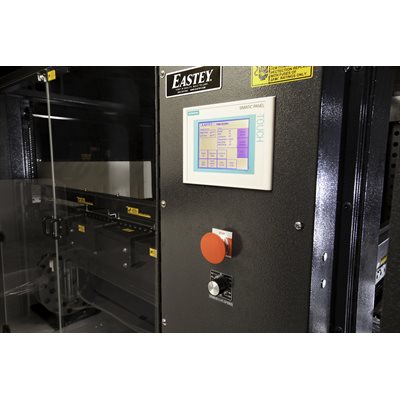

• PLC controlled with product indexing

• Film tracking wheels keep film in place

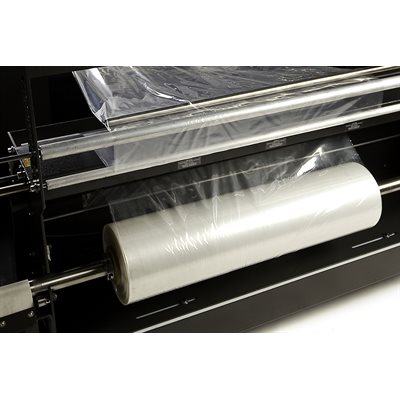

• Power film unwind ensures proper tension of film

• Multiple pin perforator provides precise air evacuation

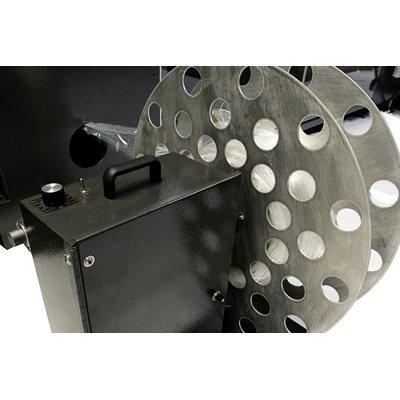

• Power Film take-up scrap winder included

• Custom two-part epoxy finish resists scratching

• Heavy duty casters for transportation within plant

• Easy to use design requires minimal training and maintenance

• 60 PSI

• Made in USA






 Technical Sheet  User Guide
