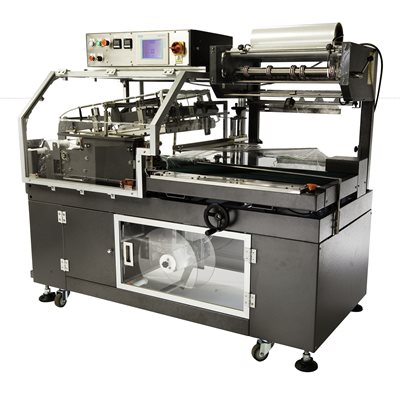

Eastey Automatic L-Sealer, 17" x 21", Hot Knife, 220V, Value Series

Part Number: VSA1721-TKV1

Proven reliable over and over again, these intermediate-level EASTEY Automatic L-Sealers provide you with all the quality features found in many higher-priced machines. They are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC.

$36,750.00 /EACH
List price: $36,750.00 /EACH
    • EACH
  • Availability: Available to Order

Features

• Designed to seal most polyolefin, polyethylene, and PVC shrink films
• All-welded main frame from 12 gauge steel
• Normal speed infeed and outfeed conveyors
• High Speed with product indexing
• Motorized seal height adjustment for various product sizes
• Seal head equipped with pneumatic air cylinder for automatic sealing
• Hot knife seal bar for consistent and clean seal
• Consistent pressure across seal bar
• Automatic cycle timing with adjustable dwell time

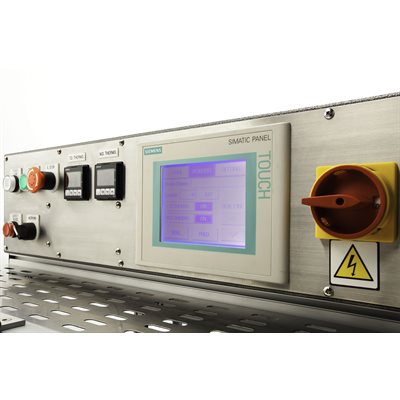

• HMI Controller with simple menus for easy operation

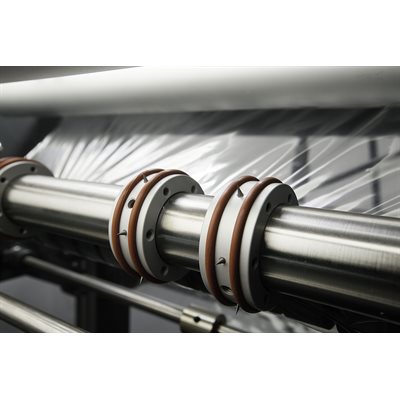

• Film tracking wheels keep film in place
• Multiple pin perforator provides precise air evacuation
• Heavy duty casters for transportation within plant
• Leveling legs provide sturdy base once in place
• 17"W x 21"L seal area

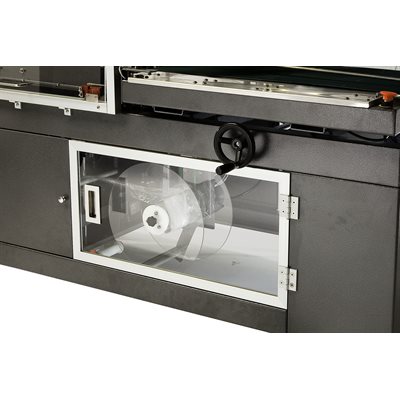

• Scrap unwind automatically wraps up the scrap film left from the sealer
• Easy to use design requires minimal training and maintenance
• Maximum film width up to 22"
• Maximum film roll OD up to 12"
• 80 psi
• Made in USA

Specifications

Specifications
Seal Dimensions: 21" Front x 17" Side
Machine Dimensions: 45" W x 58" H x 72" L
Accepted Films: Polyolefin, Polyethylene, and PVC
Max Film Width: 22"
Sealer Head Type: Hot Knife
Power: 220V 10A Single Phase
Weight:
1000 lbs.
Shipping Weight: 1100 lbs.

Documents


 Technical Sheet User Guide
