Stitch Head 1/2 Cr, 25 Rd Wire, M2000 - Horizon
Part Number: CTTT2605Q3
The M2000 is a newer version of the classic Acme Interlake and Bostitch stitcher heads. Improvements include more wear resistant internal parts, an external grip spring, and an enlarged magnetic swivel. With proper care and maintenance, this stitcher head will give you years of satisfactory service.
Includes Stitcher Head, Clincher Assembly, and Wire Guide
$1,220.00 /EACH
List price: $1,220.00 /EACH
List price: $1,220.00 /EACH
- Stitch Head 1/2 Cr, 25 Rd Wire, M2000 - Model A
- Stitch Head 1/2 Cr, 25 Rd Wire, M2000 - Duplo
- Stitch Head 1/2 Cr, 25 Rd Wire, M2000
- Stitch Head 1/2 Cr, 25 Rd Wire, M2000 - McCain
- Stitch Head 1/2 Cr, 25 Rd Wire, M2000
- Stitch Head 1/2 Cr, 25 Rd Wire, M2000
- Stitch Head 1/2 Cr, 25 Rd Wire, M2000 - Rosback, with Centering Guide
- Stitch Head 1/2 Cr, 25 Rd Wire, M2000 - Binderymate
- Availability: Available to Order
Specifications
| Technical Data | |
|---|---|
| Max Capacity: | 2 sheets to 1/4" |
| Crown Width: | 1/2" |
| Wire Sizes: | 24-30 gauge round |
| Minimum Center-to-Center: | 1-7/8" |
| Speed: | 12,000 stitches / hour |
| Machines: | Horizon Booklet Makers |
Documents
 |
| M2000 Operators Manual |
M2000 Stitcher Head
Click part numbers in the diagram for product pages

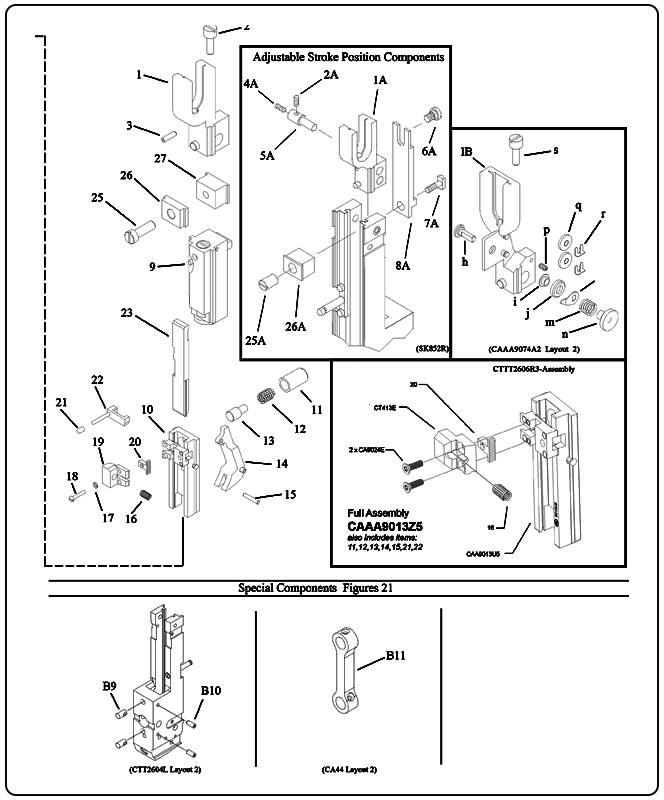

M2000 Stitcher Head (Figure 2)
Click part numbers in the diagram for product pages
