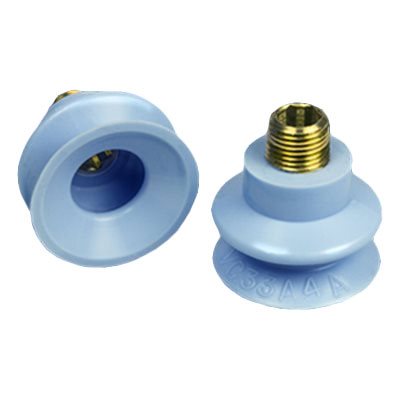

Blue Vinyl Vacuum Cup 1.14H x .1.12W x 1/8 MPT Style J
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.14H x .1.12W x 1/8 MPT Style J

Part Number: VC-33A4A 1/8 MPT

 Dimensions in mm
Outer Lip Diameter 1.14 29
Overall Height 1.12 28.4

  • Contact us for pricing

  • Availability: Available to Order
 General Information
 Material: Vinyl  Thread Size: 1/8 NPT Male
 Mounting Type: Threaded  Cleats: No
 Bellows: 1  Suggested Use: Uneven Surface

   Style K Dimensions in mm
 Dimension A 1.14 29
 Dimension B 1.12 28.4
 Dimension C 0.55 14
 Dimension D 0.71 18
 Dimension E 0.54 13.7
 Dimension H 0.5 12.7

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
