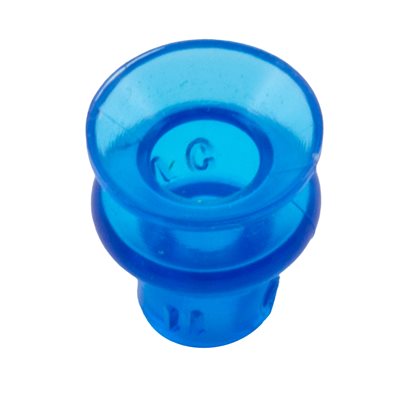

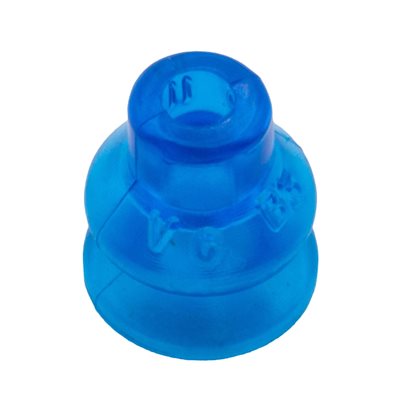

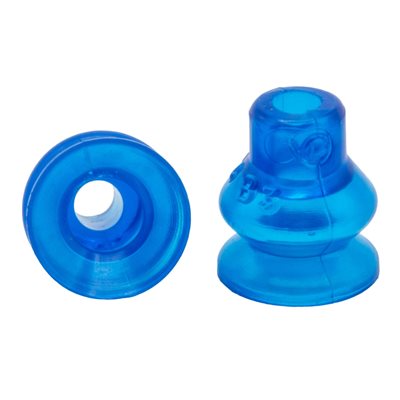

Blue Vinyl Vacuum Cup .59H x .52W x .15B Style K
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .59H x .52W x .15B Style K

Part Number: VC-B3

1x $5.09 /EACH
25x $4.85 /EACH
50x $4.35 /EACH
100x $3.75 /EACH
200x $3.25 /EACH
500x $2.77 /EACH
List price : $5.09 /EACH
    • EACH
  • Availability: In stock
 Dimensions in mm
Outer Lip Diameter 0.52 13.2
Mounting Stem ID 0.15 3.8
Overall Height 0.59 15

 General Information
 Material: Vinyl
 Mounting Type: Push on
 Bellows: 1  Suggested Use: Label Placement

   Style K Dimensions in mm
 Dimension A 0.52 13.2
 Dimension B 0.59 15
 Dimension C 0.4 10.2
 Dimension D 0.32 8.2
 Dimension F 0.15 3.8

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
