Akiles Diamond-7 Electric Corner Rounder
Double-tap and hold to zoom.
Mouse over the image to zoom.

Akiles Diamond-7 Electric Corner Rounder

Part Number: DIAMOND-7

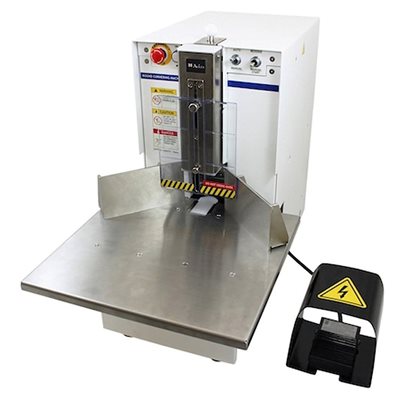

Akiles Diamond 7 is a heavy-duty electric corner rounder for higher productivity

Corner rounding for up to a 2.75" stack of paper - 700 sheets of 20 lb paper

Handles all standard materials: PVC, polyester, leather, paper, polypropylene, etc.

Includes (1) 1/4" knife

$5,999.00 /EACH
List price: $5,999.00 /EACH
  • Max Pile Height (in.) : 2.75"
  • Max Pile Height (mm) : 70mm
  • Table Size : 12.6" x 11.8"
  • Radius Size Options : 1/8", 1/4", 3/8", 1/2", 5/8", Straight, Half-Moon
  • Operation : Electric
    • EACH
  • Availability: Available to Order

Features

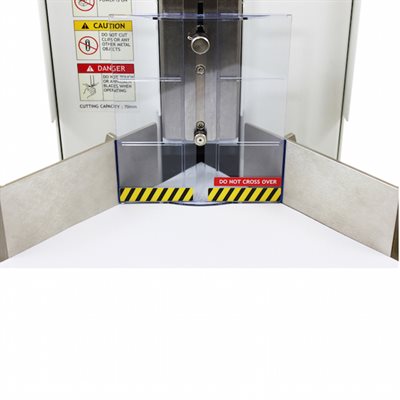

• Protective Safety Cover keeps your fingers safely out of the cutting area during use.

• Patented upper die design & micro-adjustable lower die, allow for smooth and accurate cuts.

• Detachable Pressing Bar holds paper in place during the rounding process and also detaches for easy replacement of knives (Diamond 7 only).

• Manual & Auto Mode switch between automatic foot pedal or manual hand operation with the flip of a switch.

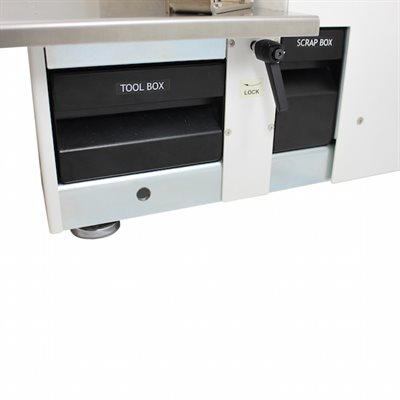

• Separate built-in storage bins for tools and corner scraps.

• Large Work Table

• Heavy-Duty Foot Pedal

Specifications

Technical Data
Model: Diamond-7
Operation: Electric
Maximum Capacity: 2-3/4" (70mm) - 700 sheets (20 lb.)
Available Knives/Dies: 1/8"1/4"3/8"1/2"5/8", Straight and Half-Moon
Included Knife/Die: 1/4"
Cutting Speed: 46 RPM
Motor: 200 W
Electrical: 110 VAC, 60Hz
Dimensions: 24-5/8" W x 12-5/8" L x 17-1/2" H
Weight: 110 lbs.
Warranty: 1 year
