Lassco Wizer

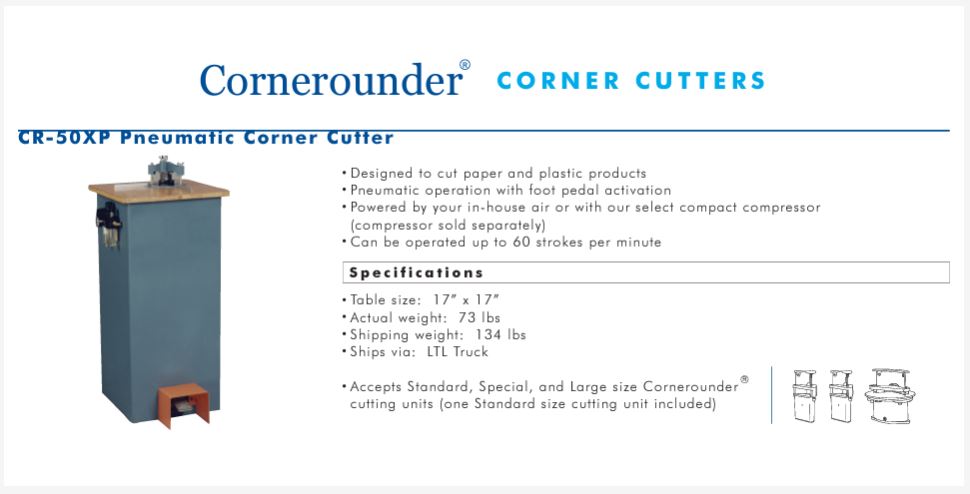

• The CR-50XP cuts up to 1/2" or 125 sheets of 20 lb. paper
• Designed to cut paper and plastic
• Pneumatic, fully automatic operation
• Up to 60 strokes per minute
• Includes a right angle push block, which makes rounding the corners on smaller product simple and easy
| Technical Data | |
|---|---|
| Model: | Lassco Wizer CR-50XP |
| Maximum Capacity | 1/2" (50 sheets) |

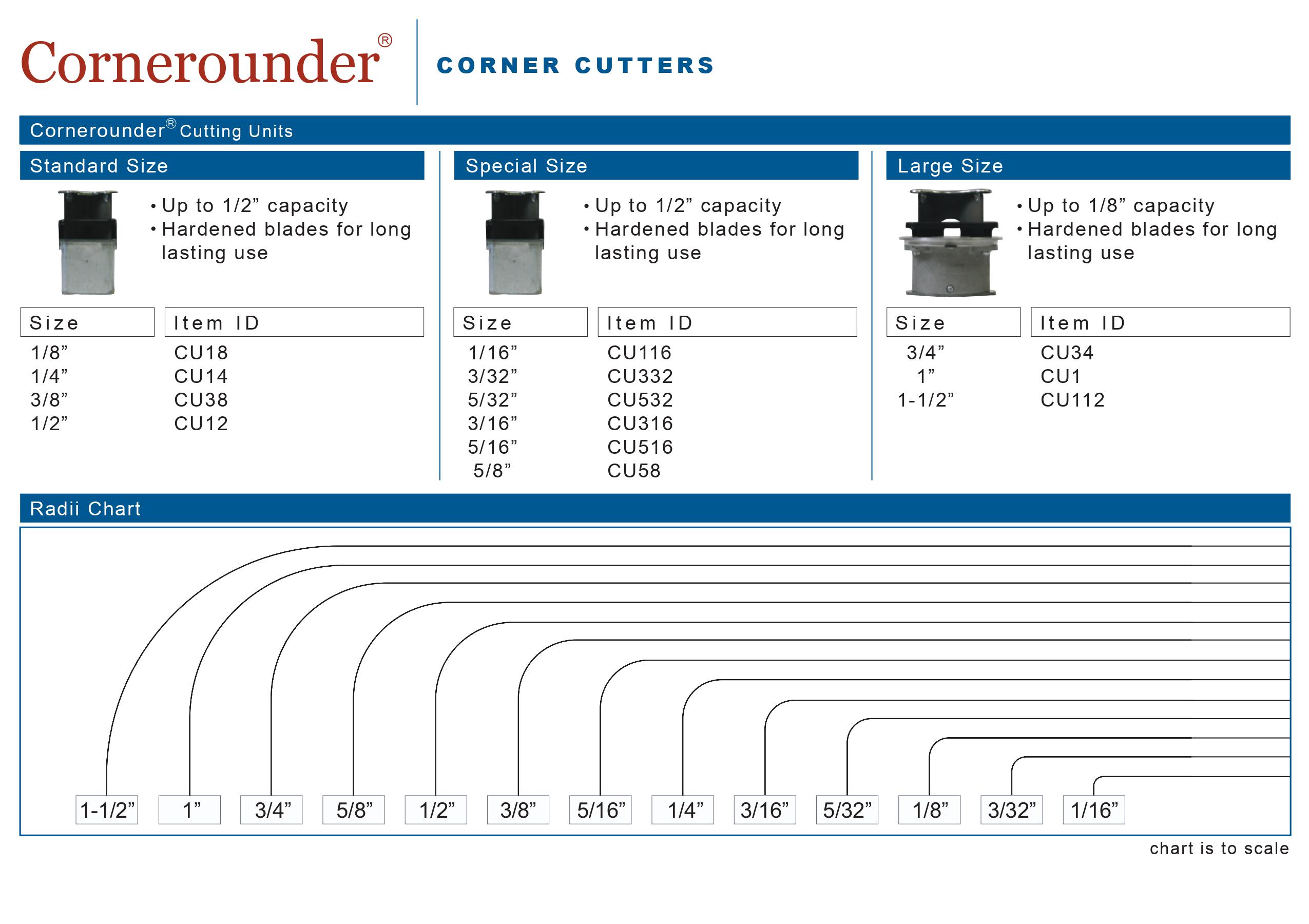

| Available Cutting Units: | 1/16", 3/32", 5/32", 1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 3/4", 1", 1.5" |
| Included Cutting Units: | Not Included |
| Table Dimensions: | 17" x 17" |
| Air Requirements: | 80 psi |
| Weight: | 73 lbs. |

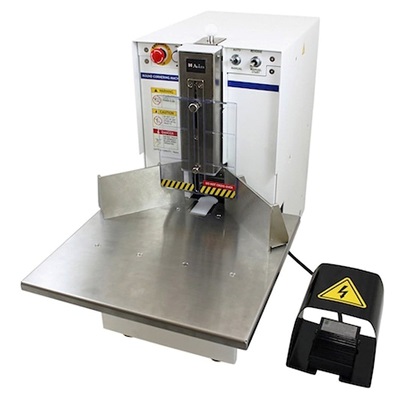

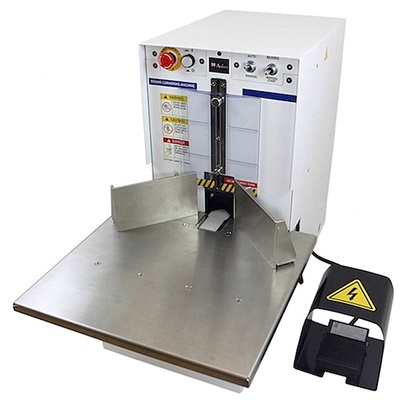

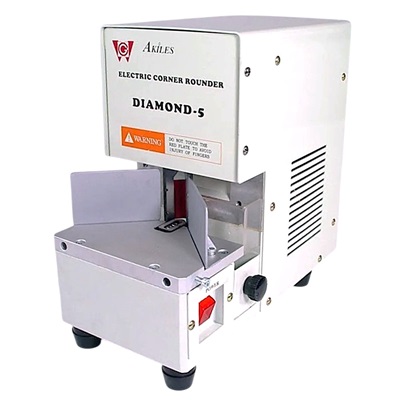

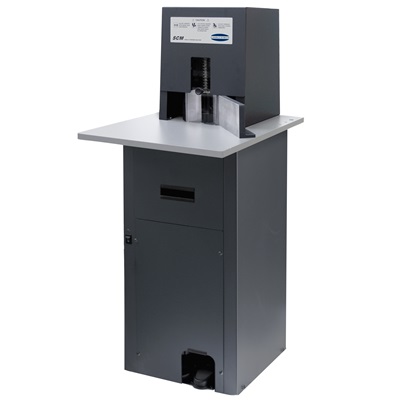

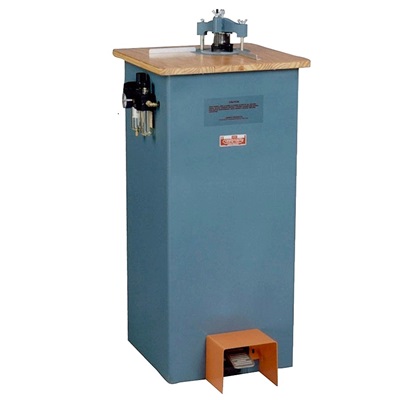

| Model Name | Akiles Diamond-5 | Akiles Diamond-6 | Akiles Diamond-7 | Lassco Wizer CR-50XP | Challenge SCM |
|---|---|---|---|---|---|
| Model: |  |  |  |  |  |
| Max Capacity: | 2" | 2-3/8" | 2-3/4" | 1/2" | 4" |
| Operation: | Electric | Electric | Electric | Pneumatic | Hydraulic |
| Table Size: | 10" x 11.5" | 11.75" x 12.5" | 11.75" x 12.5" | 17" x 17" | 20.25" x 24" |
| Radius Sizes: | 1/8" to 3/8" (3 Options) | 1/8" to 5/8" (7 Options) | 1/8" to 5/8" (7 Options) | 1/16" to 1.5" (12 Options) | 1/8" to 5/8" (6 Options) |
| Weight: | 55 lbs. | 104 lbs. | 110 lbs. | 73 lbs. | 190 lbs. |
| Knife Included: | (1) 1/4" and (1) 1/8" | (1) 1/4" Knife | (1) 1/4" Knife | Sold Separately | (1) Knife & Die Set |
| 45° Straight Cut | Not Available | Available | Available | Not Available | Available |
| Electrical | 110V, 50/60Hz, 60W | 110V, 50/60Hz, 100W | 110V, 50/60Hz, 200W | N/A | 1Ph, 115V, 60Hz |
Need equipment for smaller production environments? Consider Manual Corner Rounders.
