Habasit Fexproof Finger Cutter 100mm (8 x 30mm fingers)

Part Number: AF102

The AF-102 is a device for preparing (finger cutting) Habasit machine tapes for Flexproof (finger) joints. It is suitable for the standard Habasit 8 x 30 mm finger geometry. The tape is positioned and securely clamped on an aluminum support. Fingers are then cut manually. The cutter is precisely positioned on the support with a pin matching a row of precisely cut indexing grooves; the angle is given by a guiding block fixed to the cutter. The AF-102 is suitable for the occasional on-site preparation of Hamid tapes.

$757.20 /EACH
List price: $757.20 /EACH
    • EACH
  • Availability: In stock

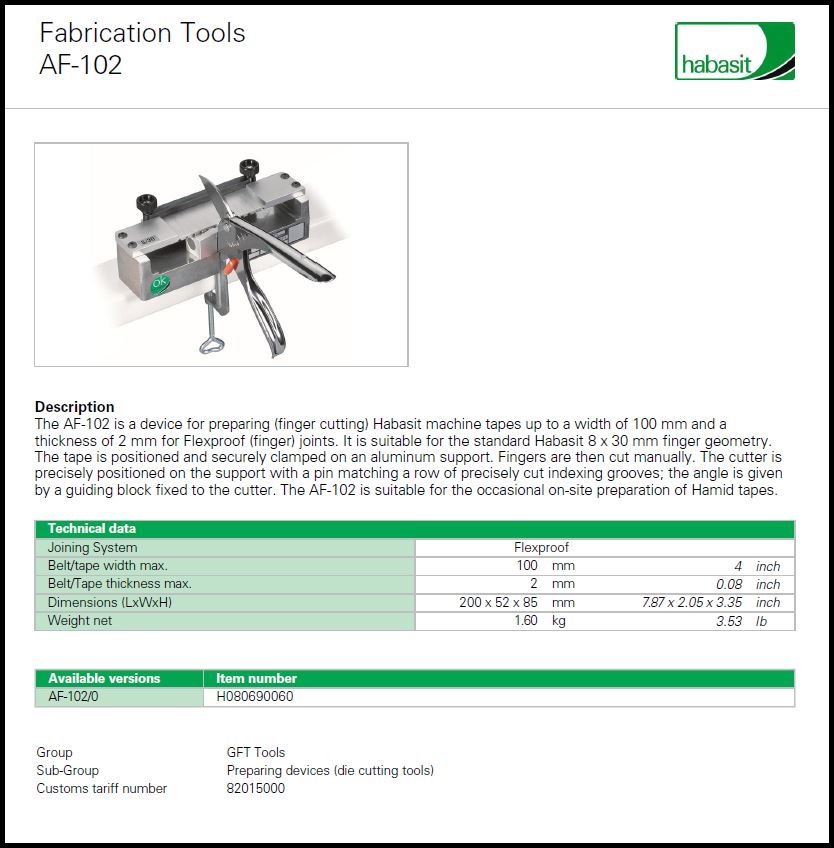

Technical Data
Belt/Tape Max Width:  100mm (4 in.)
Belt/Tape Max Thickness:  2mm (0.08 in.)
Weight: 1.60 kg (3.53 lb)
Dimensions: 200 x 52 x 85mm (7.87 x 2.05 x 3.35 in.)
