Akiles

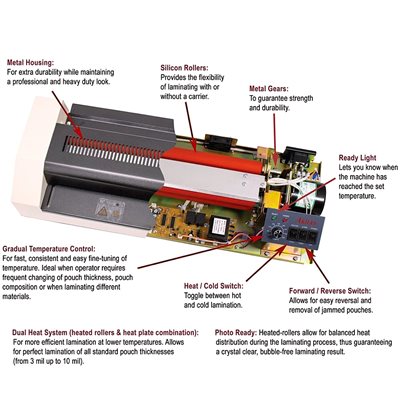

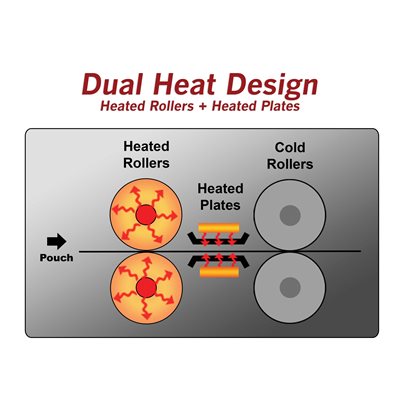

• 4 Roller Thermal System - 2 hot rollers & 2 cold rollers for clear, bubble free lamination

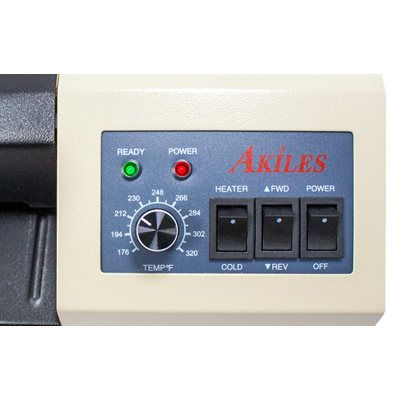

• Variable Temp Control - fast and easy temperature changes for fine tuning ideal laminating quality
• Silicone Rollers - laminate with or without a carrier
• Jam Release - reverse switch allows for jam correction
• Hot or Cold Lamination - versatility in allowing for a range of laminating temperatures
| Technical Data | |
|---|---|
| Model: | ProLam Plus 160 |
| Throat Capacity: | 6.3" (160mm) |
| Max Pouch Thickness: | 10 mil |
| Max Laminating Speed: | 21"/min |
| Max Temperature: | 320° F (160° C) |
| Max Laminating Thickness: | 1mm |
| Rollers: | 4 Silicon Rollers (2 Heat/2 Cold) |
| Dimensions: | 14.5" x 8.5" x 4.5" |
| Weight: | 14 lbs |
| Warranty: | 1 Year |
| Model Name | ProLam 160 | ProLam 330 | iLam Plus | ProLam Photo | ProLam Ultra | ProLam Ultra-X6 | ProLam Ultra-XL | ProLam Ultra-X10 | ProLam R27 |
|---|---|---|---|---|---|---|---|---|---|
| Model: |  |  |  |  |  |  |  |  |  |
| Width Capacity: | 6.3" (160mm) | 13" (330mm) | 12.8" (325mm) | 13" (330mm) | 13" (330mm) | 13" (330mm) | 18.9" (480mm) | 13" (330mm) | 27" (685mm) |
| Max Laminating Speed: | 21" / minute | 21" / minute | 21" / minute | 59" / minute | 53" / minute | 59" / minute | 47" / minute | 142" / minute | 43" / Minute |
| Pouch/Film Thickness: | 3 to 10 mil | 3 to 10 mil | 3 to 10 mil | 3 to 10 mil | 3 to 14 mil | 3 to 14 mil | 3 to 14 mil | 3 to 14 mil | 1.5 to 10 mil |
| Max Laminating Thickness: | 1mm | 1mm | 1mm | 1mm | 3mm | 3mm | 3mm | 3mm | 3mm |
| Heated Rollers: | 2 Hot / 2 Cold | 2 Hot / 2 Cold | 2 Hot / 2 Cold | 4 Hot / 2 Cold | 4 Hot / 2 Cold | 4 Hot / 2 Cold | 4 Hot / 2 Cold | 6 Hot / 4 Cold | 2 Hot |
| Speed Control: | 1 Setting | 1 Setting | 1 Setting | 9 Settings | 9 Settings | 9 Settings | 9 Settings | 9 Settings | 9 Settings |
| Reverse Switch: | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Weight: | 14 lbs. | 20 lbs. | 15 lbs. | 39 lbs. | 33 lbs. | 35 lbs. | 44 lbs. | 57 lbs. | 93 lbs. |
