• Patented Air Cooling System
• 6 Roller System
• Laminates up to 14 mil
• Removable Cover
• User-Friendly Control Panel
• 13" Capacity
• Auto Shutoff
• 6 Memory Settings
| Technical Data | |
|---|---|

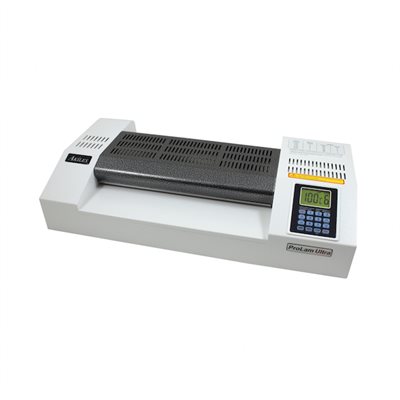

| Model: | ProLam Ultra |
| Throat Capacity: | 13" (330mm) |
| Max Pouch Thickness: | 14 mil |
| Max Laminating Speed: | 53"/min |
| Max Temperature: | 140° C |
| Max Laminating Thickness: | 1/8" (3mm) |
| Rollers: | 6 Silicon Rollers (4 Heat/4 Cold) |
| Temperature Control: | Digital Display & Keypad |
| Speed Control: | 9 Settings |
| Memory Settings: | 7 Presets |
| Reverse Function: | Yes |
| Weight & Volume: | 40 lbs / 1.2 CuFt |
| Warranty: | One Year |
 |  |
| Brochure | Operation Manual |
| Model Name | ProLam 160 | ProLam 330 | iLam Plus | ProLam Photo | ProLam Ultra | ProLam Ultra-X6 | ProLam Ultra-XL | ProLam Ultra-X10 | ProLam R27 |
|---|---|---|---|---|---|---|---|---|---|
| Model: |  |  |  |  |  |  |  |  |  |
| Width Capacity: | 6.3" (160mm) | 13" (330mm) | 12.8" (325mm) | 13" (330mm) | 13" (330mm) | 13" (330mm) | 18.9" (480mm) | 13" (330mm) | 27" (685mm) |
| Max Laminating Speed: | 21" / minute | 21" / minute | 21" / minute | 59" / minute | 53" / minute | 59" / minute | 47" / minute | 142" / minute | 43" / Minute |
| Pouch/Film Thickness: | 3 to 10 mil | 3 to 10 mil | 3 to 10 mil | 3 to 10 mil | 3 to 14 mil | 3 to 14 mil | 3 to 14 mil | 3 to 14 mil | 1.5 to 10 mil |
| Max Laminating Thickness: | 1mm | 1mm | 1mm | 1mm | 3mm | 3mm | 3mm | 3mm | 3mm |
| Heated Rollers: | 2 Hot / 2 Cold | 2 Hot / 2 Cold | 2 Hot / 2 Cold | 4 Hot / 2 Cold | 4 Hot / 2 Cold | 4 Hot / 2 Cold | 4 Hot / 2 Cold | 6 Hot / 4 Cold | 2 Hot |
| Speed Control: | 1 Setting | 1 Setting | 1 Setting | 9 Settings | 9 Settings | 9 Settings | 9 Settings | 9 Settings | 9 Settings |
| Reverse Switch: | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Weight: | 14 lbs. | 20 lbs. | 15 lbs. | 39 lbs. | 33 lbs. | 35 lbs. | 44 lbs. | 57 lbs. | 93 lbs. |
