• Programmable Memory Settings
•LCD Control Panel
• Blazing Fast 10 Roller Heat System
• Removable Cover
• 13" and 18.9" Capacities
•Setting Guide
• Auto Shutoff
• Air Cooling System
| Technical Data | |
|---|---|

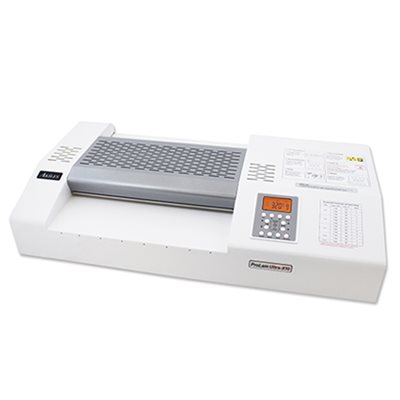

| Model: | ProLam Ultra X10 |
| Throat Capacity: | 13" (330mm) |
| Max Pouch Thickness: | 14 mil |
| Max Laminating Speed: | 142" / min |
| Operating Temperature: | 32° F - 320° F |
| Max Laminating Thickness: | 1/8" (3mm) |
| Rollers: | 10 Silicon Rollers (6 Heat / 4 Cold) |
| Memory Settings: | 2 Programmable (Temperature & Speed) |
| Speed Control: | 9 Settings |
| Operating Temperature: | 32° F - 320° F |
| Dimensions: | 14" x 25.75" x 5.75" |
| Power Consumption: | 1560 W |
| Weight: | 57 lbs (26 kg) |
| Warranty: | One Year |
 |  |
| Brochure | Operation Manual |
| Model Name | ProLam 160 | ProLam 330 | iLam Plus | ProLam Photo | ProLam Ultra | ProLam Ultra-X6 | ProLam Ultra-XL | ProLam Ultra-X10 | ProLam R27 |
|---|---|---|---|---|---|---|---|---|---|
| Model: |  |  |  |  |  |  |  |  |  |
| Width Capacity: | 6.3" (160mm) | 13" (330mm) | 12.8" (325mm) | 13" (330mm) | 13" (330mm) | 13" (330mm) | 18.9" (480mm) | 13" (330mm) | 27" (685mm) |
| Max Laminating Speed: | 21" / minute | 21" / minute | 21" / minute | 59" / minute | 53" / minute | 59" / minute | 47" / minute | 142" / minute | 43" / Minute |
| Pouch/Film Thickness: | 3 to 10 mil | 3 to 10 mil | 3 to 10 mil | 3 to 10 mil | 3 to 14 mil | 3 to 14 mil | 3 to 14 mil | 3 to 14 mil | 1.5 to 10 mil |
| Max Laminating Thickness: | 1mm | 1mm | 1mm | 1mm | 3mm | 3mm | 3mm | 3mm | 3mm |
| Heated Rollers: | 2 Hot / 2 Cold | 2 Hot / 2 Cold | 2 Hot / 2 Cold | 4 Hot / 2 Cold | 4 Hot / 2 Cold | 4 Hot / 2 Cold | 4 Hot / 2 Cold | 6 Hot / 4 Cold | 2 Hot |
| Speed Control: | 1 Setting | 1 Setting | 1 Setting | 9 Settings | 9 Settings | 9 Settings | 9 Settings | 9 Settings | 9 Settings |
| Reverse Switch: | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Weight: | 14 lbs. | 20 lbs. | 15 lbs. | 39 lbs. | 33 lbs. | 35 lbs. | 44 lbs. | 57 lbs. | 93 lbs. |
