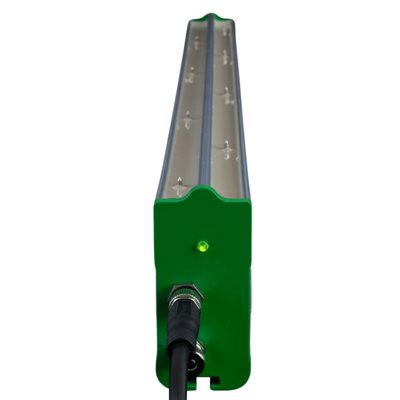

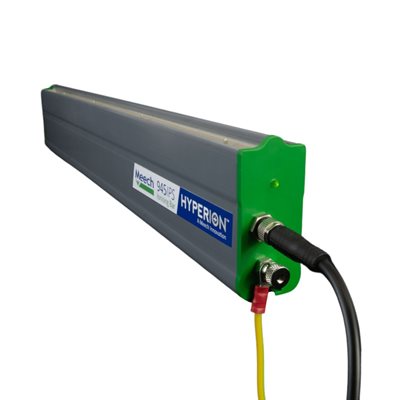

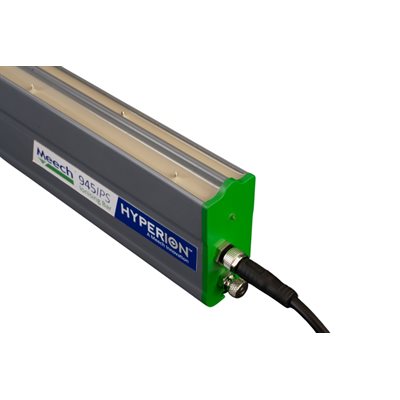

Meech Hyperion Mid-Range Pulsed DC Ionizing Bar 800mm (31.5" overall)
Part Number: 945IPS-31
The Hyperion 945IPS is a compact pulsed DC ionizing bar. It is used to control static electric charges in mid range applications from 150-600mm (6" - 24"). An integral 15kV pulsed DC power supply allows for easy installation on printing, converting and packaging machinery. Requiring only a 24V DC supply, the 945IPS removes the need to route high-voltage cabling through the machine.
Power Cord sold separately (options).
$1,485.00 /EACH
List price: $1,485.00 /EACH
List price: $1,485.00 /EACH
- Availability: Available to Order
Complete System:
- 924IPS Ionizing Bar
- 100-240V AC Power Cable or PLC/Direct Connect 24V Power Cable
Specifications
| Technical Data | |
|---|---|
| Typical Operating Range: | 5.90" (150mm) - 23.62" (600mm) |
| Dimensions: | 1.18" (30mm) x 2.64" (67mm) |
| Max Length: | 155.91" (3960mm) |
| Weight: | 1.98 lb (0.9 kg) / meter |
| Mounting: | 'T' slot with M4 x 35mm studs |
| Input Voltage & Current: | 24 V DC Max 625mA |
| Output Voltage: | Adjustable, +/- up to 15kV pulsed DC |
| Electrical Connection: | 4 Pole M8 |
| Output Frequency: | Default: 5 Hz (adjustable with BarMaster) |
| Output Balance: | Default: 52% positive, 42% negative |
| Max Ambient Temp: | 60° C (140° F) |
Documents
 |  |  |
| Data Sheet | Instructions | Static Causes & Cures |
Accessories
Power Supply: 900IPS-SM2MS or 900IPS-PCS2
Inline Air Ionizer: 942-BE or 261V2-32-FLEX
Static Locator: 983V2
Controller: 900IPS-BM
